U'King ZQ02061 (Fixture fix)

Dear Sir/Madam,

I am following up on my previous post as the issue remains unresolved.

I recently purchased the DDJ-FLX10, which includes DMX functionality, and I am attempting to connect four U King ZQ02061 Moving Head units. Unfortunately, the current fixture for this model in the Rekordbox library is not functioning correctly. While the pan and tilt movements work as expected, the lights only project white light, and I am unable to access colors, patterns, or other effects.

The official manual lacks detailed information on the color wheel, gobo wheel, and other essential DMX functions, which may be why the fixture is not working properly. To assist in troubleshooting, I have manually tested and documented all DMX functions, which I’ve outlined below.

Could you kindly update the fixture library to ensure full compatibility with these moving heads?

Thank you for your support, and I look forward to your prompt assistance.

Best regards,
Frederic

Moving Head Details

• Manufacturer: U King
• Model: ZQ02061
• Fixture Type: Moving Head
• DMX Channel Modes: 12CH & 14CH
• Website
• Manual (not complete, see full documentation below)

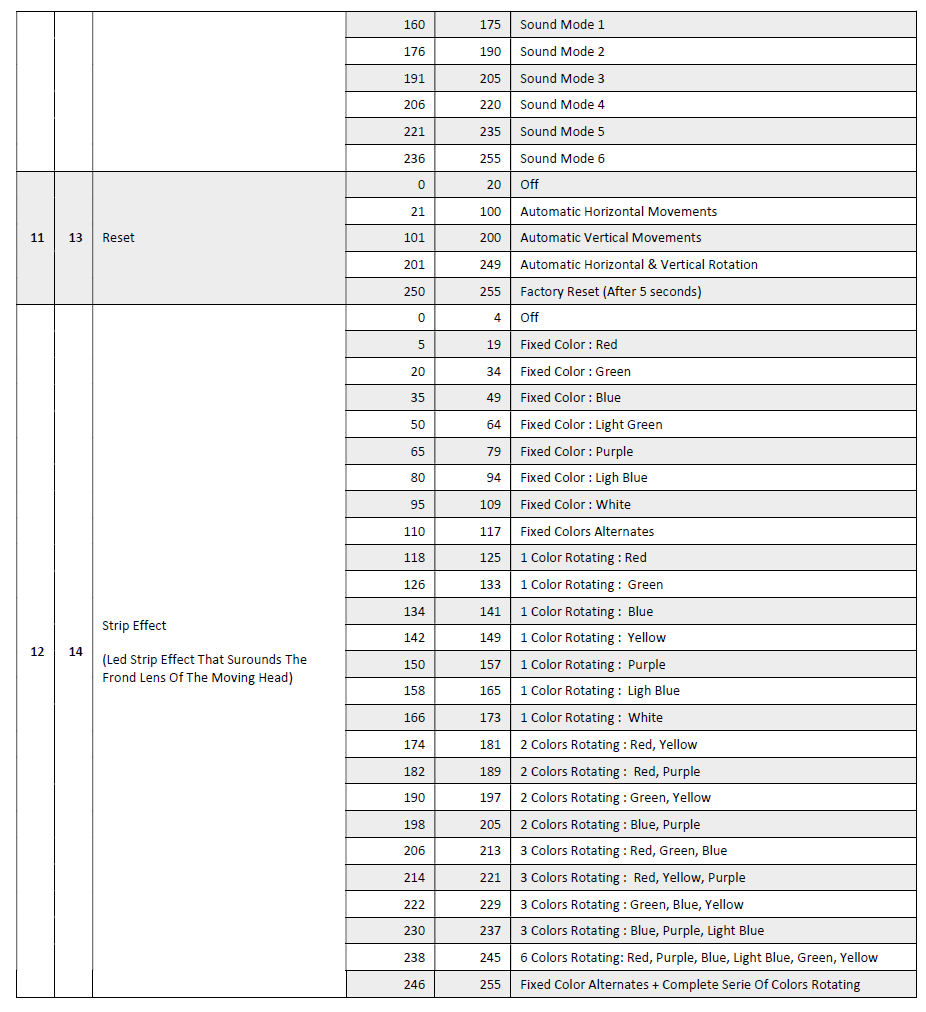

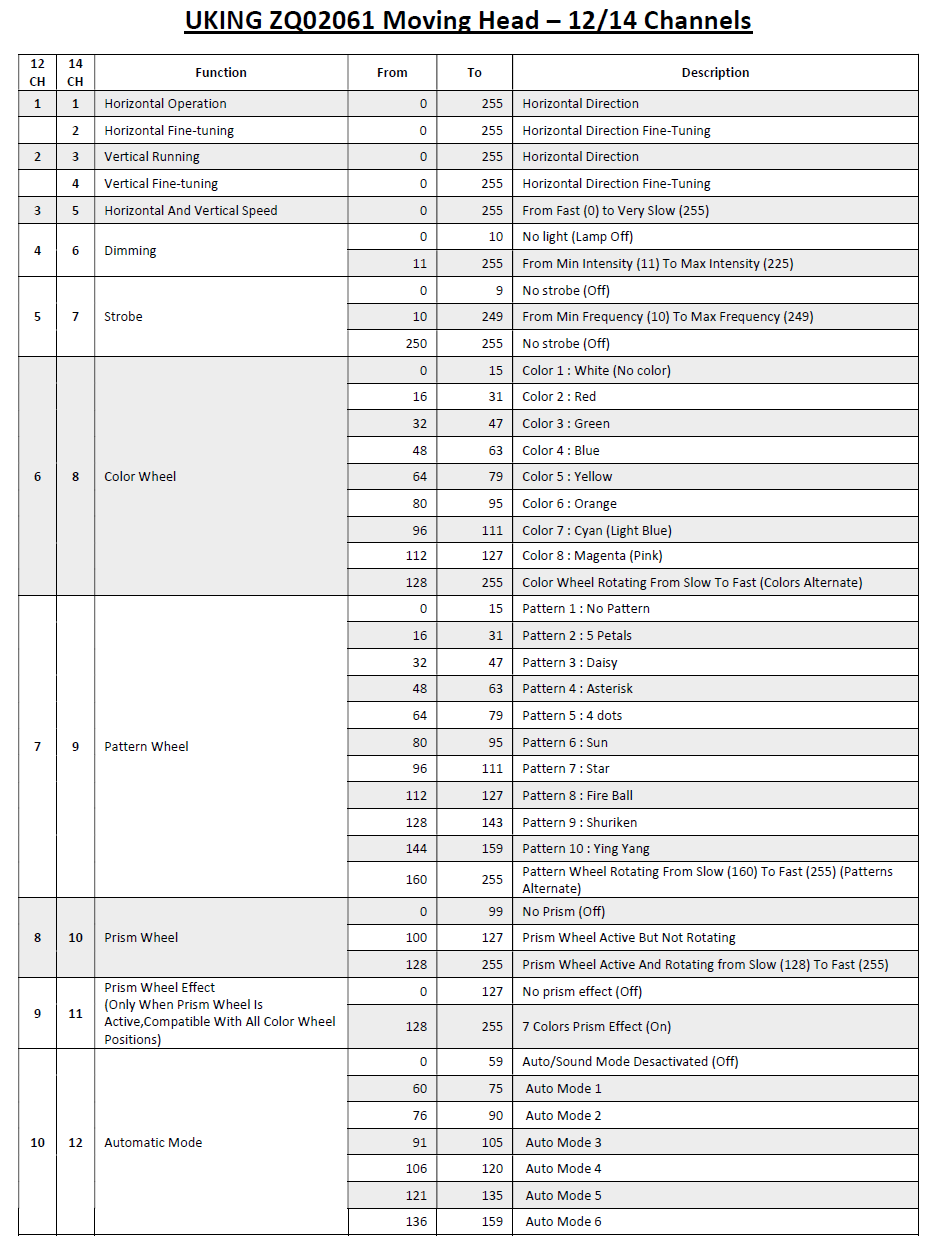

The official manual lacks complete information on the color wheel, gobo wheel, and other DMX details. Below, you’ll find the fully documented DMX chart that I personally tested.  I have also uploaded the full documentation in PDF format here: 📄 Google Drive Link
