Lighting Feature Request of VUD-WX-HG200
Manufacturer: VUD
Model Name / Number: WX-HG200
Fixture type (eg. par, bar, mover, FX, etc): Par
A link to the product website (not a retailer page please!): http://www.wanxianglight.com/page105.html?product_id=445
A link to the product manual: http://pmo25e791.pic26.websiteonline.cn/upload/6r3f.doc

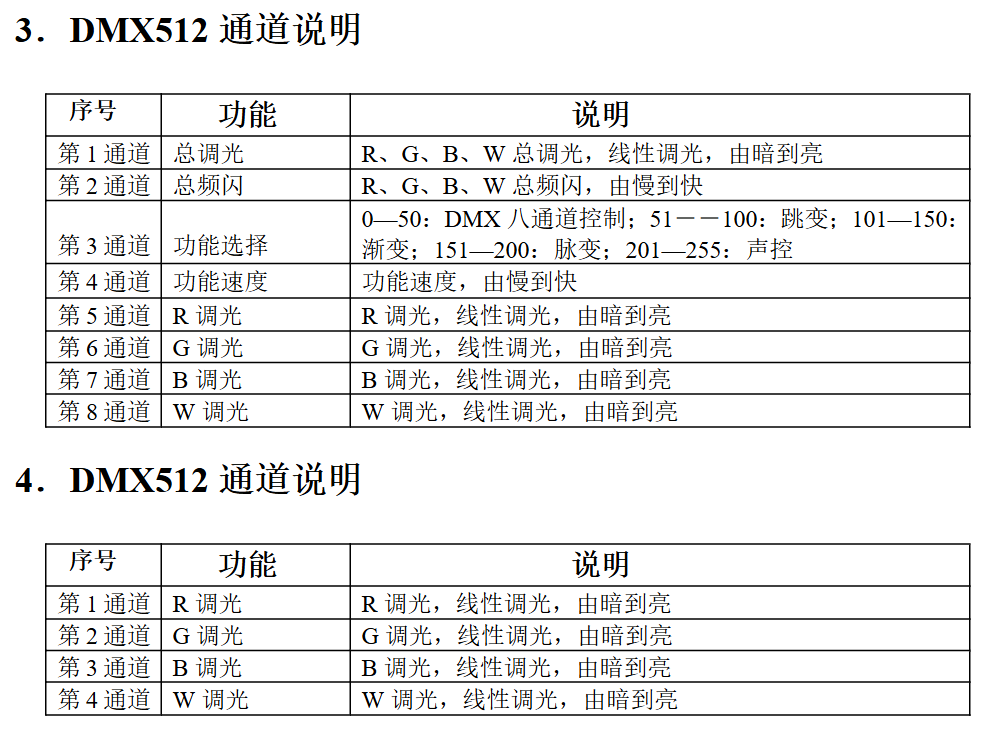

DMX channel modes (where available):
[8 CHs mode]
CH001: Dimmer
CH002: Strobe
CH003: Function
CH004: Function Speed
CH005: Red
CH006: Green
CH007: Blue
CH008: White
[4 CHs mode]
CH001: Red
CH002: Green
CH003: Blue
CH004: White
