Mobile Bar Light I (SP2P2H2)
Manufacturer: Chinese (Unknown)
Model name: Mobile Bar Light I (SP2P2H2)
Fixture Type: Bar
Product Manual: Channel mode 66 functios is provided below
DMX Channel Mode: 66 Channel
|

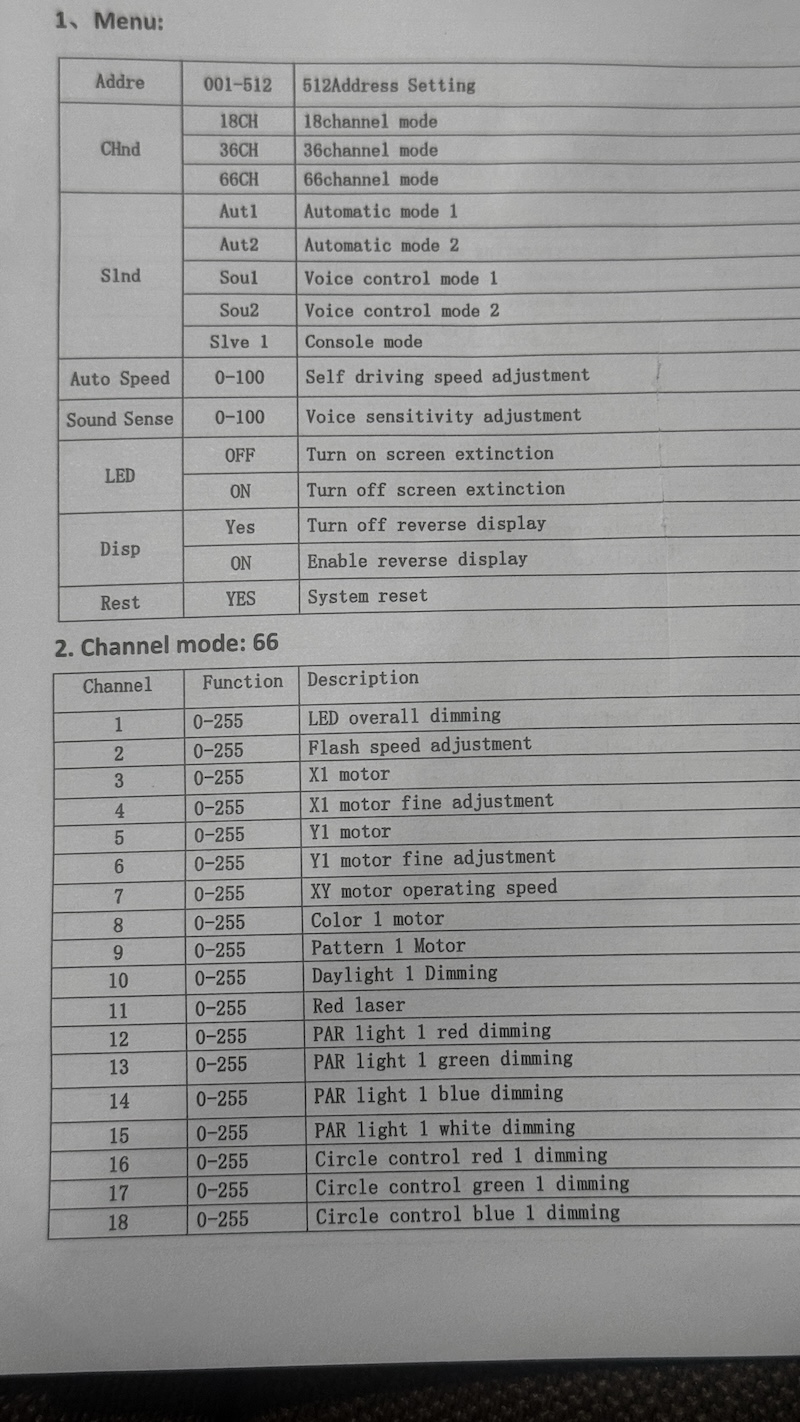

2. Channel mode: 66 |
|
|
|
Channel |
Function |
Description |
|
1 |
0-255 |
LED overall dimming |
|
2 |
0-255 |
Flash speed adjustment |
|
3 |
0-255 |
Xl motor |
|
|
0-255 |
X1 motor fine adjustment |
|
5 |
0-255 |
Y1 motor |
|
6 |
0-255 |
Yl motor fine adjustment |
|
7 |
0-255 |
XY motor operating speed |
|
|
0-255 |
Color 1 motor |
|
9 |
0-255 |
Pattern 1 Motor |
|
10 |
0-255 |
Daylight 1 Dimming |
|
11 |
0-255 |
Red laser |
|
12 |
0-255 |
PAR light 1 red dimming |
|
13 |
0-255 |
PAR light 1 green dimming |
|
14 |
0-255 |
PAR light 1 blue dimming |
|
15 |
0-255 |
PAR light 1 white dimming |
|
16 |
0-255 |
Circle control red 1 dimming |
|
17 |
0-255 |
Circle control green 1 dimming |
|
18 |
0-255 |
Circle control blue 1 dimming |
|
|
————————— |
|
|

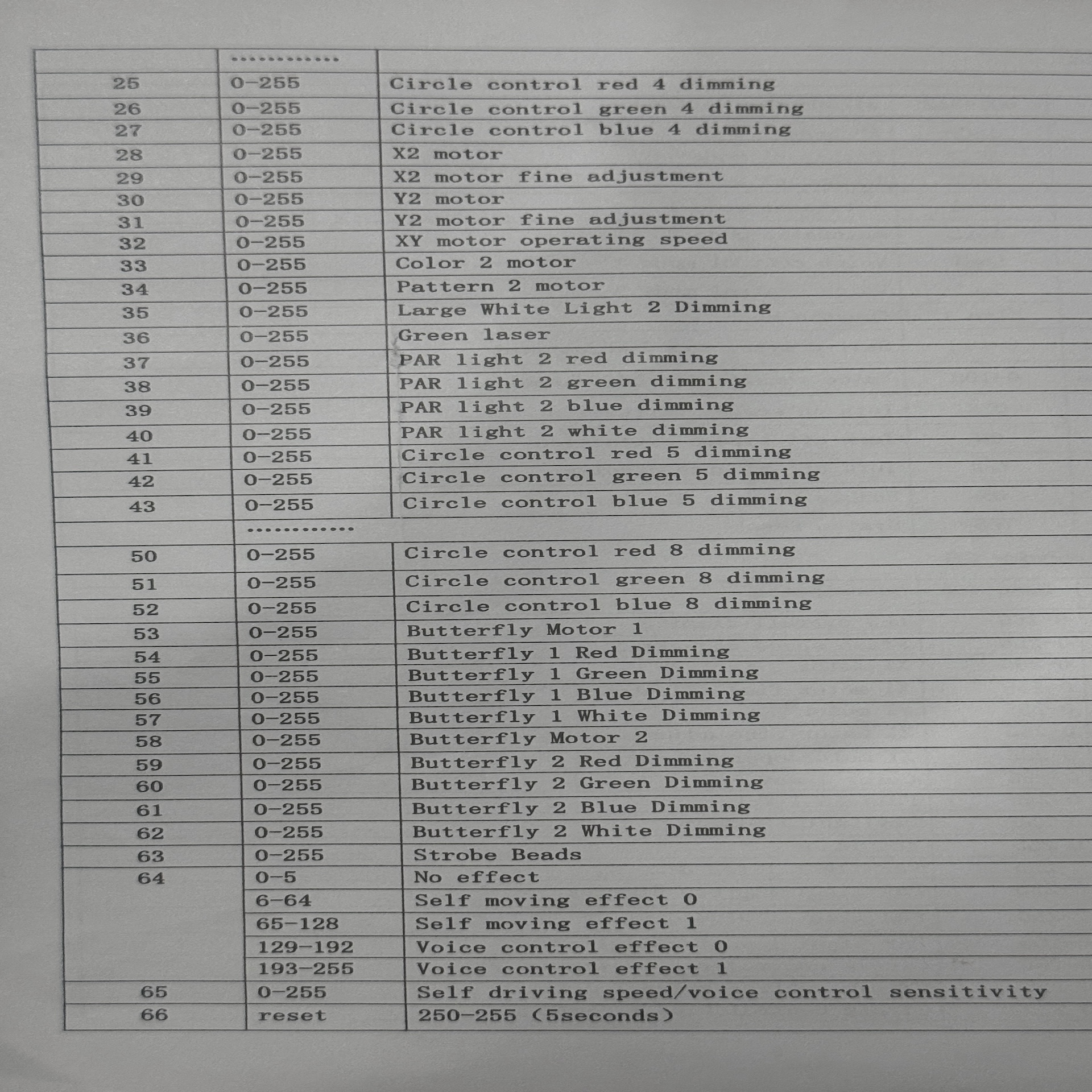

25 |
0-255 |
Circle control red 4 dimming |
|
26 |
0-255 |
Circle control green 4 dimming |
|
27 |
0-255 |
Circle control blue 4 dimming |
|
28 |
0-255 |
X2 motor |
|
29 |
0-255 |
X2 motor fine adjustment |
|
30 |
0-255 |
Y2 motor |
|
31 |
0-255 |
Y2 motor fine adjustment |
|
32 |
0-255 |
XY motor operating speed |
|
33 |
0-255 |
Color 2 motor |
|
34 |
0-255 |
Pattern 2 motor |
|
35 |
0-255 |
Large White Light 2 Dimming |
|
36 |
0-255 |
Green laser |
|
37 |
0-255 |
PAR light 2 red dimming |
|
38 |
0-255 |
PAR light 2 green dimming |
|
39 |
0-255 |
PAR light 2 blue dimming |
|
40 |
0-255 |
PAR light 2 white dimming |
|
41 |
0-255 |
Circle control red 5 dimming |
|
42 |
0-255 |
Circle control green 5 dimming |
|
43 |
0-255 |
Circle control blue 5 dimming |
|
|
————————— |
|
|
50 |
0-255 |
Circle control red 8 dimming |
|
51 |
0-255 |
Circle control green 8 dimming |
|
52 |
0-255 |
Circle control blue 8 dimming |
|
53 |
0-255 |
Butterfly Motor 1 |
|
54 |
0-255 |
Butterfly 1 Red Dimming |
|
55 |
0-255 |
Butterfly 1 Green Dimming |
|
56 |
0-255 |
Butterfly 1 Blue Dimming |
|
57 |
0-255 |
Butterfly 1 White Dimming |
|
58 |
0-255 |
Butterfly Motor 2 |
|
59 |
0-255 |
Butterfly 2 Red Dimming |
|
60 |
0-255 |
Butterfly 2 Green Dimming |
|
61 |
0-255 |
Butterfly 2 Blue Dimming |
|
62 |
0-255 |
Butterfly 2 White Dimming |
|
63 |
0-255 |
Strobe Beads |
|
64 |
0-5 |
No effect |
|
|
6-64 |
Self moving effect 0 |
|
|
65-128 |
Self moving effect 1 |
|
|
129-192 |
Voice control effect 0 |
|
|
193-255 |
Voice control effect 1 |
|
65 |
0-255 |
Self driving speed/voice control sensitivity |
|
66 |
reset |
250-255 (seconds)
|
|
Technical parameters: |
|
Voltage: AC100~240V, 50/60 Hz |
|
Power consumption: 300W Light source: 30W, |
|
With 2 white LEDs |
|
Pattern: 7 patterns, +patterns, white Color: 7 colors,+, white |
|
Light strip: 12X5050 beads RGB 0.2W |
|
Strobe light: 2X10W white LED |
|
Two 130mA red and green laser lights, one each Butterfly light: 2X10W4 integrated LED |
|
Light distribution: 2 6X5W4 integrated LEDs thoroughfare: 66CH/36CH/18CH |
|
Control modes: DMX512, automatic, voice control, master and slave control |
|
Horizontal: 540 Vertical: 270
|
