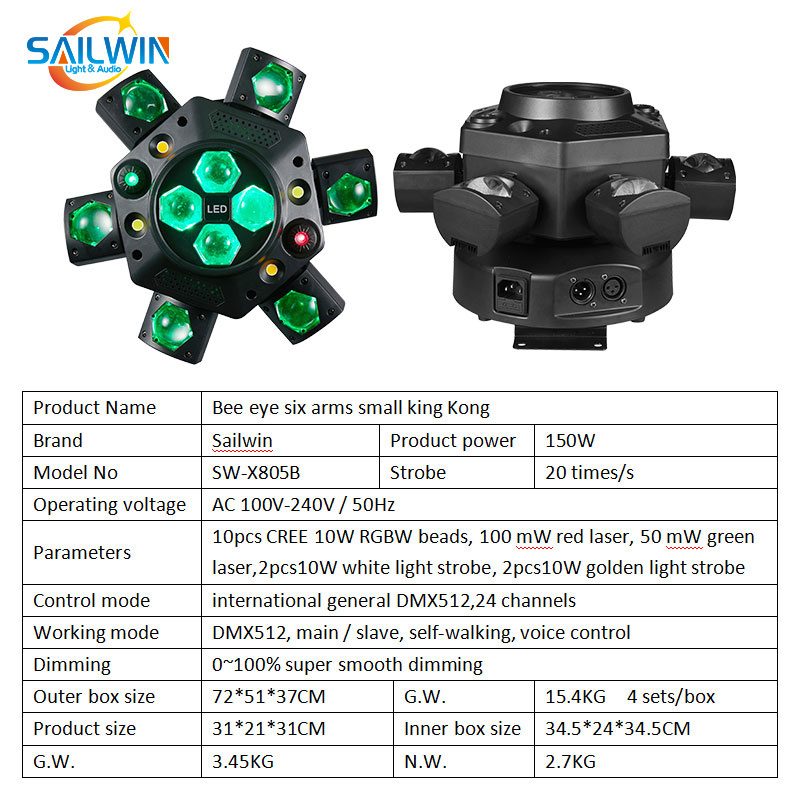

Bee Eye 6 Arms Small King Kong (Model: SW-X805B

Manufacturer:

SailWin Light & Audio Technology Co., Ltd.

Model Name / Number:

Bee Eye 6 Arms Small King Kong (Model: SW-X805B)

Fixture Type:

Moving Head Effect Light (Bee Eye + Beam + Laser + Strobe Hybrid)

Product Website (Manufacturer / Non-Retail):

https://sailwinlight.en.made-in-china.com/product/nxqRdOLHnMUZ/China-6-Armed-Beam-Bee-Eye-Small-King-Kong-Strobe-Laser-Effect-Light.html

User Manual (DMX Chart Included):

https://manuals.plus/m/8172bcdb3419fa3cf0557282aa4d03abc2ac30d69e32450e9c4d88a91e3254e5

DMX Channel Modes:

24 Channels (DMX512)

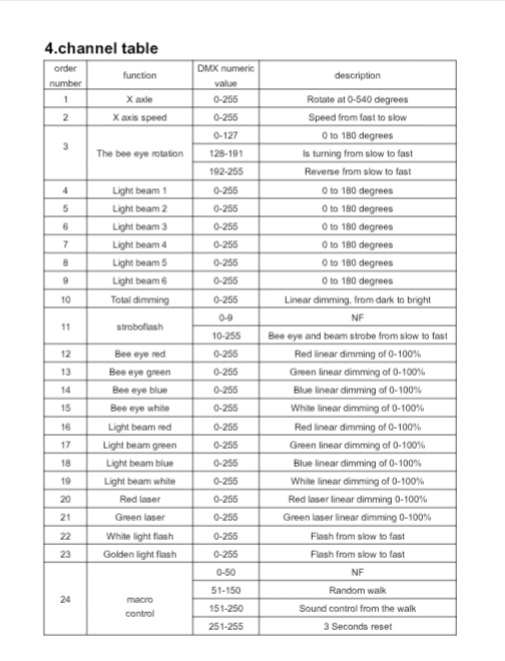

DMX Channel Overview (24CH Mode):

Pan (0–540°)

Pan Speed

Bee Eye Rotation

Arm 1 Position (0–180°)

Arm 2 Position

Arm 3 Position

Arm 4 Position

Arm 5 Position

Arm 6 Position

Master Dimmer

Strobe

Bee Eye Red

Bee Eye Green

Bee Eye Blue

Bee Eye White

Arm RGBW Red

Arm RGBW Green

Arm RGBW Blue

Arm RGBW White

Red Laser (100mW)

Green Laser (50mW)

White Strobe

Amber (Golden) Strobe

Macro / Auto / Sound Programs

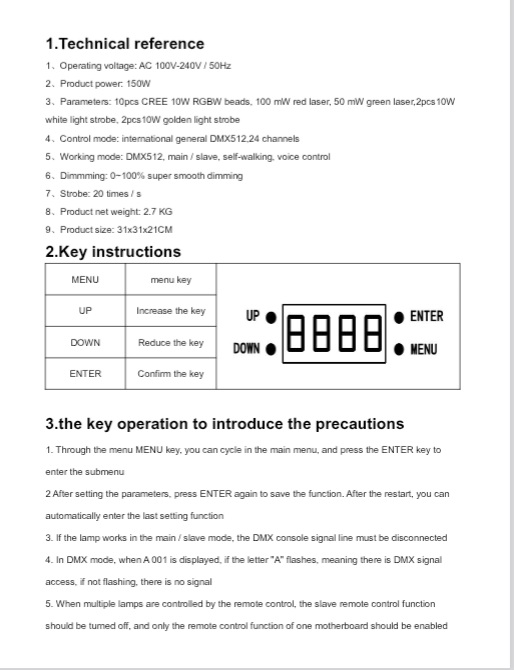

Additional Notes:

Pan: 540° rotation

6 independent moving arms (0–180° each)

Central Bee Eye with independent rotation and RGBW color mixing

Built-in red and green lasers

Dual-color strobe (white & amber)

Power: 150W

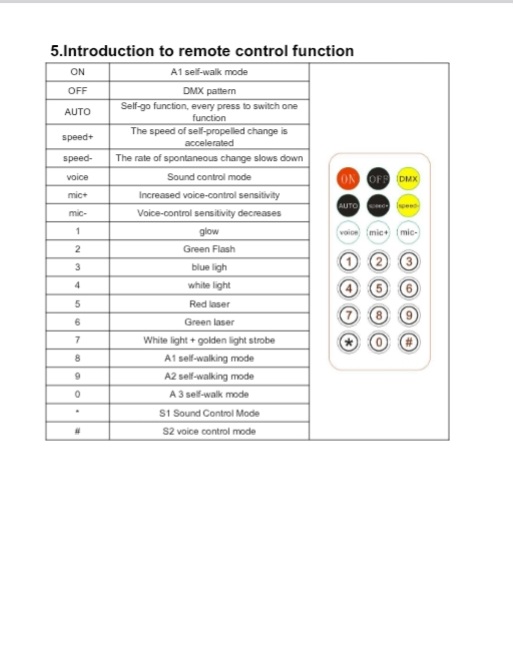

Control Modes: DMX512, Auto, Sound Active, Master/Slave

This text can be copied directly into the Pioneer DJ Fixture Request Form.
