Unbranded MS-2018 DMX LED Scanner — 8-channel fixture request
Please add a fixture profile for this scanner, or advise whether an existing profile is fully compatible.
Manufacturer: Unknown/unbranded
Model: MS-2018
Fixture type: Moving-mirror LED scanner
Light source: 1 × 30W white LED, with separate colour and gobo wheels
DMX mode: 8 channels
Product website: Unknown
Setup: rekordbox with a DDJ-FLX10

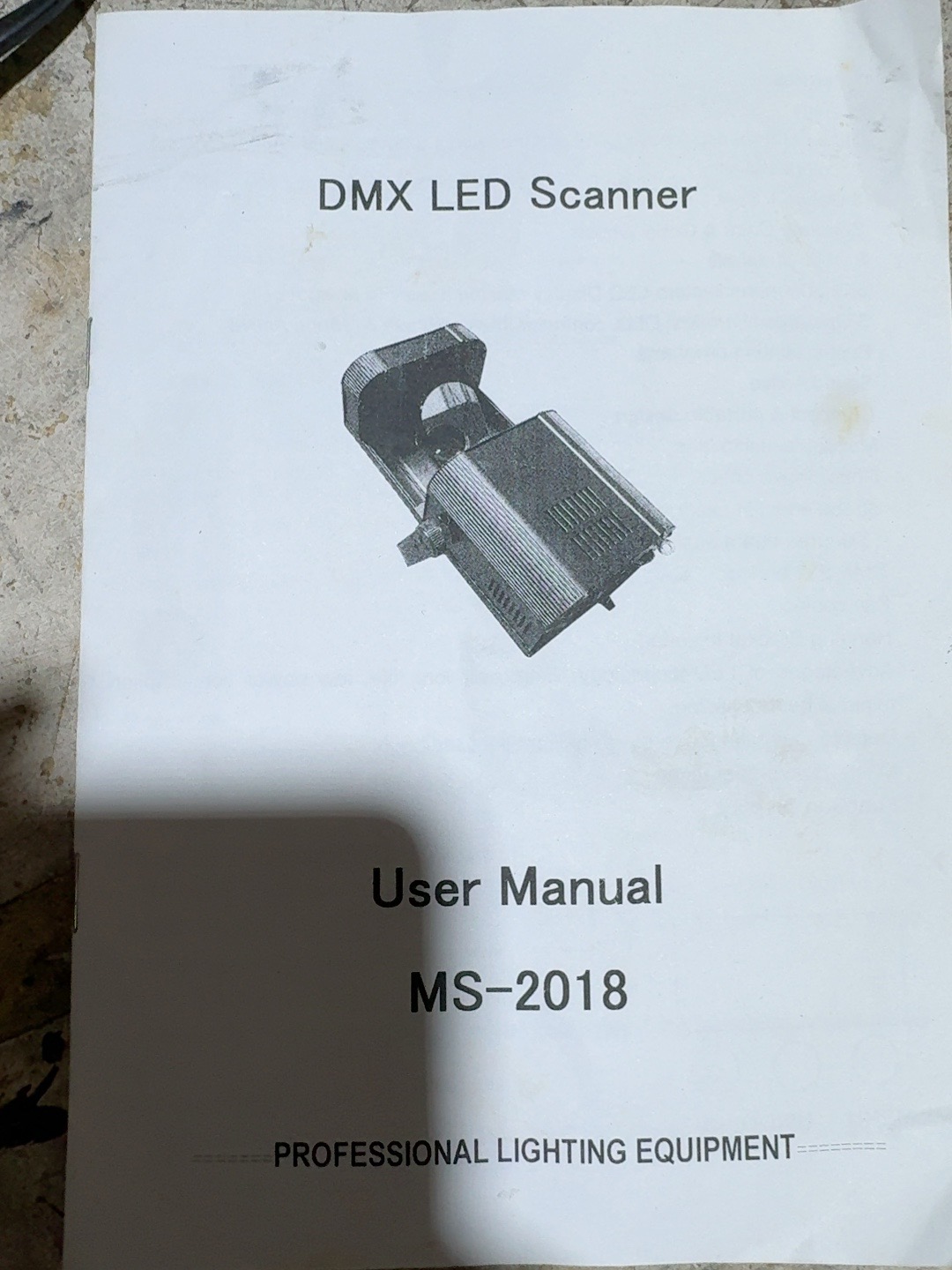

The manual specifies:
-
Pan: 0–255, centre 128
-
Tilt: 0–255, centre 128
-

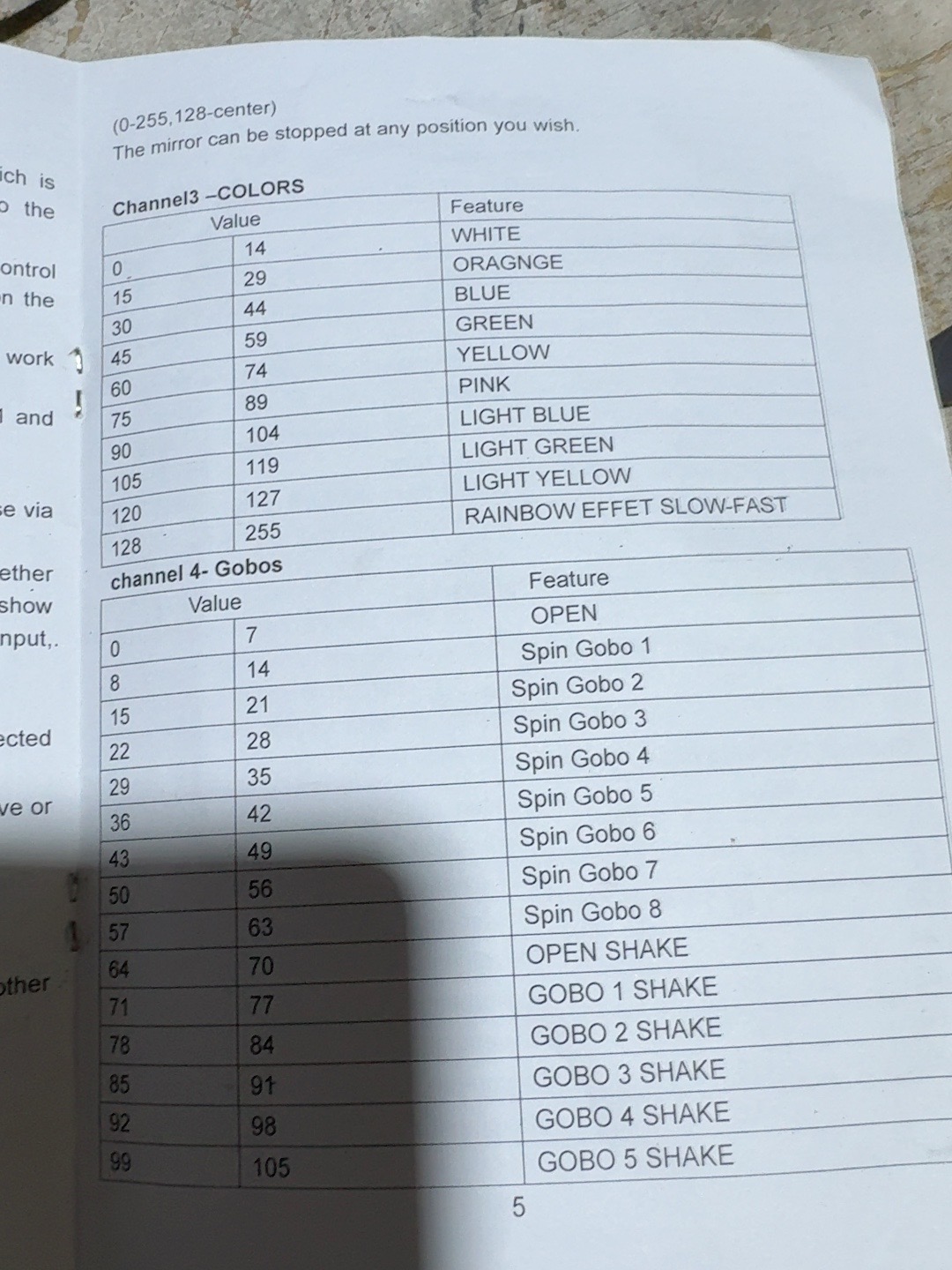

Colour wheel
-
Gobo wheel
-
Shutter/strobe
-
Dimmer: 0–255
-

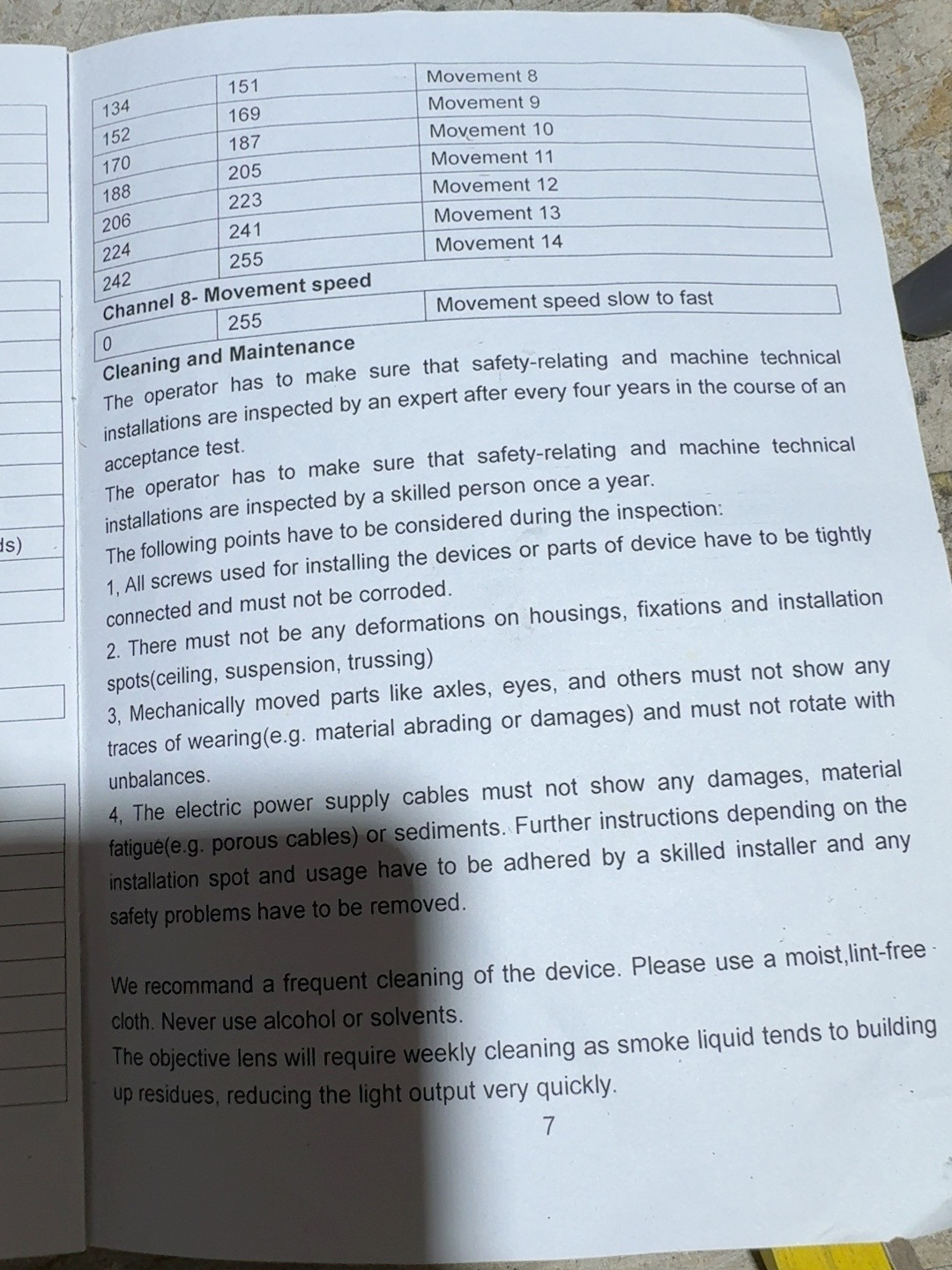

Built-in movement programs; 0–7 = no function
-
Movement speed: slow to fast

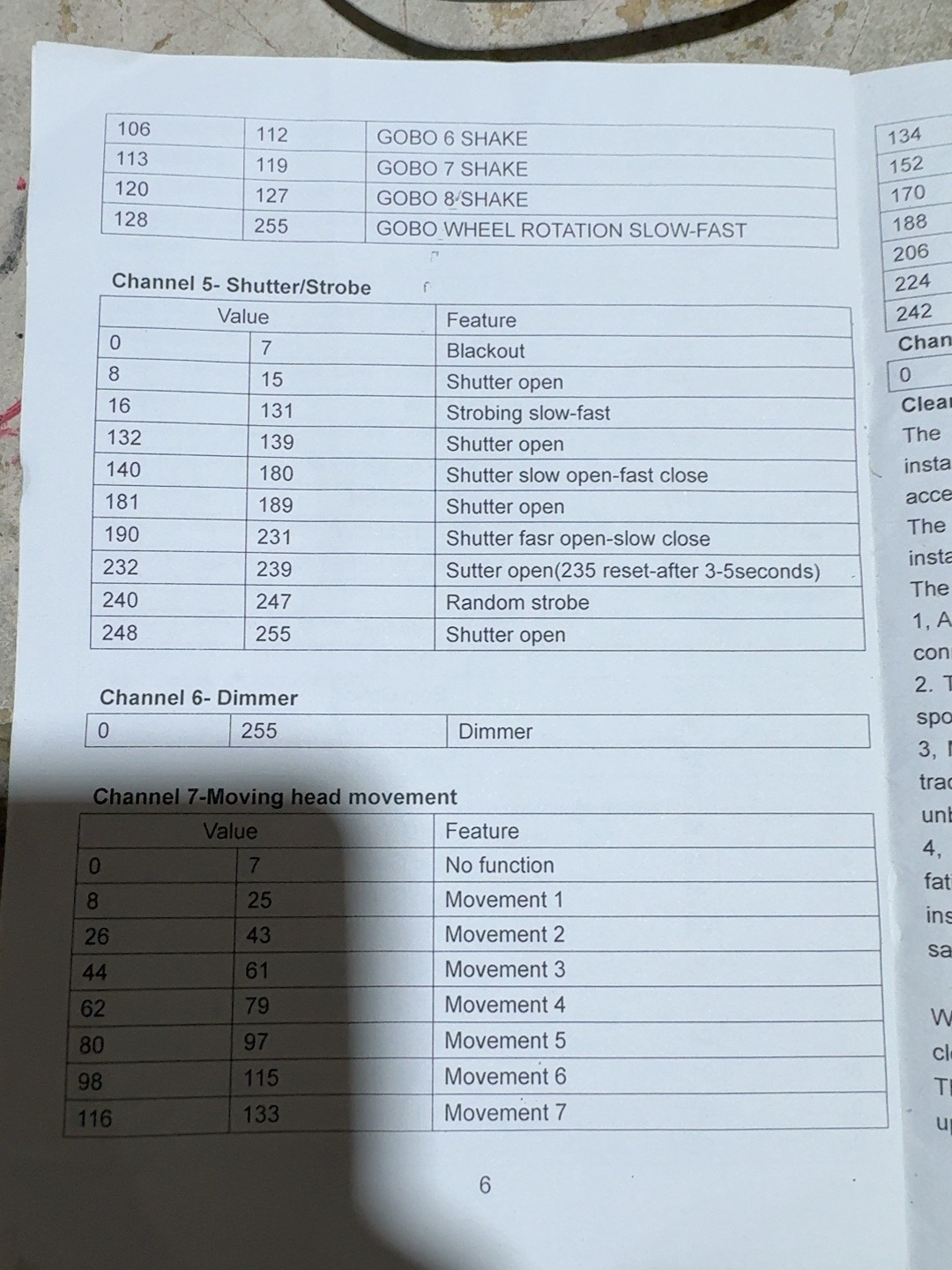

Channel 5 values 8–15 open the shutter. Value 235 trigge



rs a reset after 3–5 seconds.
I searched the Fixture Library for MS-2018, MS2018 and 2018 but could not find a matching profile
