Redsun Beam 271 / A-271MIX — 16CH fixture profile request

Please add or identify the correct AtlaBase/rekordbox profile for the Redsun Beam 271 / A-271MIX, 16-channel personality. I own two of these moving heads and use rekordbox with an RB-DMX1.

Brand: Redsun
Model: Beam 271 / A-271MIX
Type: moving-head beam with prisms and LED ring effects
DMX mode: 16CH
Product/manual URL: unavailable; the source is three photographs of the supplied Indonesian-language DMX table. The English transcription below preserves its numeric ranges.

CH1 Color: 000–009 white; 010–019 color 1; 020–029 color 2; 030–039 color 3; 040–049 color 4; 050–059 color 5; 060–069 color 6; 070–255 color-wheel rotation, slow to fast. The manual does not identify the actual hues of colors 1–6; please flag if further information is needed.

CH2 Strobe/shutter: 000–015 off; 016–245 random strobe, slow to fast; 246–255 on/open.
CH3 Dimmer: 000–255 = 0–100%.

CH4 Fixed gobo: 000–009 open; 010–019 gobo 1; 020–029 gobo 2; 030–039 gobo 3; 040–049 gobo 4; 050–059 gobo 5; 060–069 gobo 6; 070–079 gobo 1 shake; 080–089 gobo 2 shake; 090–099 gobo 3 shake; 100–109 gobo 4 shake; 110–119 gobo 5 shake; 120–129 gobo 6 shake (each slow to fast); 130–255 gobo rotation, slow to fast.

CH5 Prism 1: 000–127 inactive; 128–255 active.
CH6 Prism rotation: 000–127 prism-angle adjustment; 128–255 rotation, slow to fast.
CH7 Prism 2: 000–127 inactive; 128–255 active.
CH8 LED ring effects: 000–005 no effect; effects 1–36 occupy consecutive five-value ranges from 006–010 (effect 1) through 181–185 (effect 36); 186–255 effect 37. The photos show every individual range.

CH9 Focus: 000–255, far to near.
CH10 Pan: 000–255 = 0–100%.
CH11 Pan fine: 000–255 = 0–100%.
CH12 Tilt: 000–255 = 0–100%.
CH13 Tilt fine: 000–255 = 0–100%.
CH14 Pan/tilt speed: 000–255, fast to slow.
CH15 Frost/rainbow: 000–010 white; 011–127 frost active; 128–255 rainbow effect active.
CH16 Lamp/reset: 100–105 lamp off; 200–205 lamp on; 210–215 pan/tilt reset; 220–235 head-function reset; 240–255 all-motor reset. Hold each command for 3 seconds, as printed. Other CH16 values are not specified in these manual pages.

Reason for requesting the exact profile: the Light4Me Focus 300W Beam Ring LED substitute makes the Redsun beam flash white. Clay Paky Sharpy Standard 16CH behaves somewhat better but still remains white/fades rather than following the intended colors. These are observed mismatches, not verified compatible profiles.

Please use the original manual tables rather than infer compatibility from a similar fixture. If an exact existing profile is available, please identify its manufacturer/model/personality. I understand that automatic Lighting may not operate every auxiliary effect. Thank you.

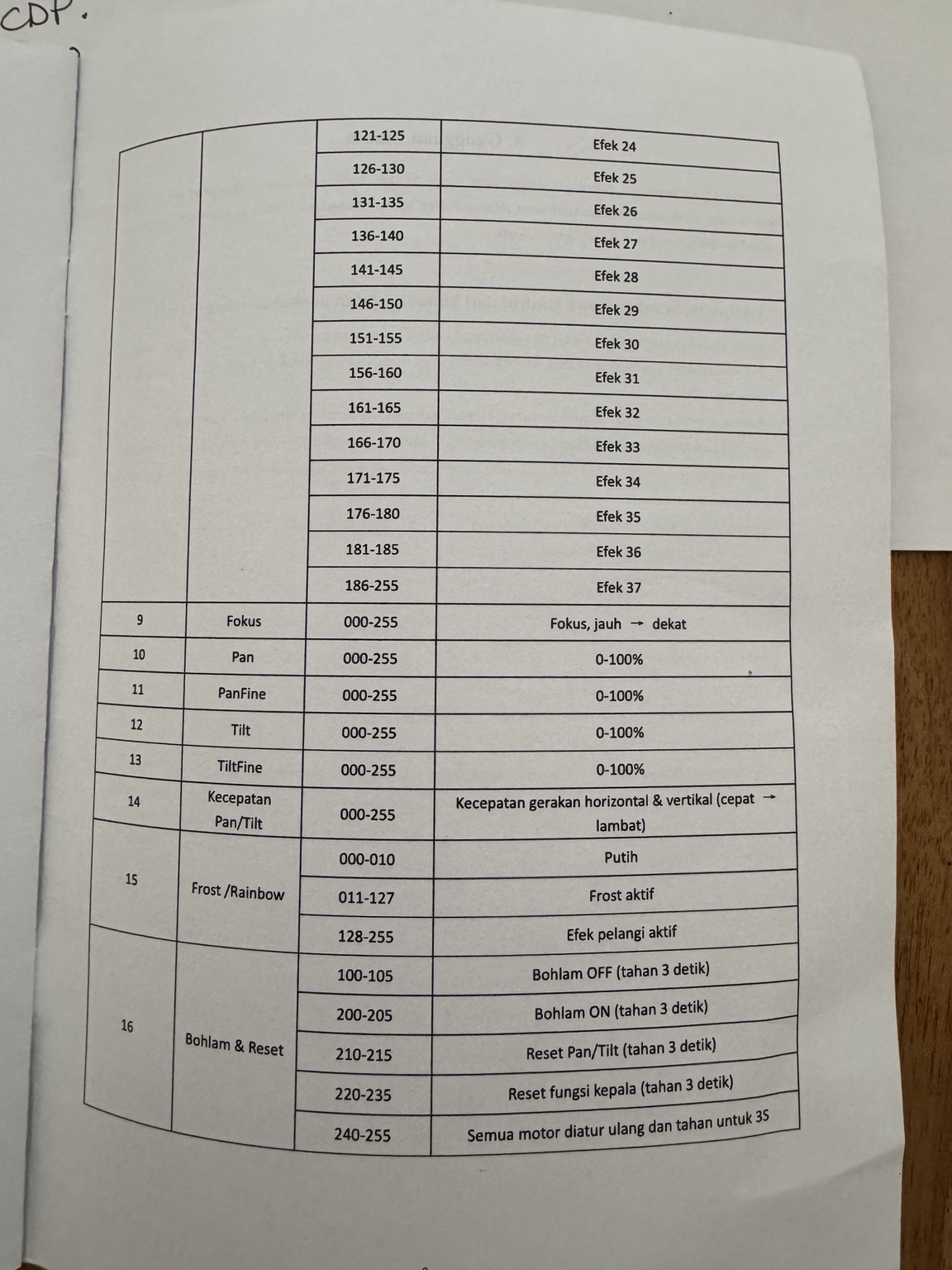

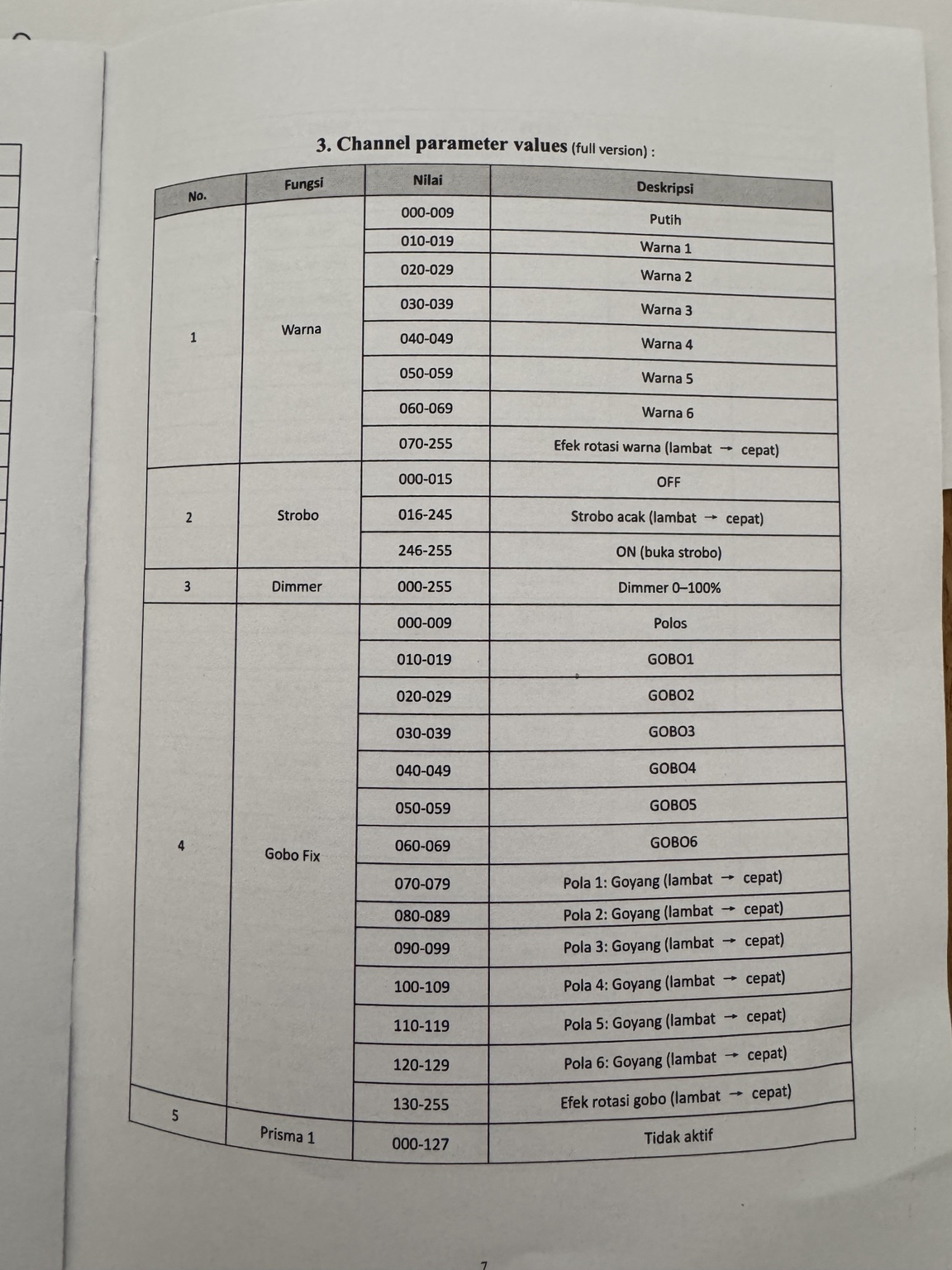

Manual photos:
