Generic / unbranded RGBW LED PAR — 8CH fixture profile request
Please add or identify an exact AtlaBase/rekordbox profile for this generic RGBW LED PAR with an 8-channel DMX personality. I use these PARs with rekordbox and an RB-DMX1.
Manufacturer/brand: unknown / unbranded
Model: not specified on the supplied instruction sheet
Fixture type: RGBW LED PAR
DMX mode: 8CH
Product/manual URL: unavailable. The source is the photographed instruction sheet titled "PAR lamps LED digital display instructions". Please use this table to identify the fixture; I do not want to assume compatibility based on channel count alone.
DMX table transcribed from the manual:
CH1 — Total/master RGBW dimming: 0–255, linear dark to light.
CH2 — Red dimming: 0–255, linear dark to light.
CH3 — Green dimming: 0–255, linear dark to light.
CH4 — Blue dimming: 0–255, linear dark to light.
CH5 — White dimming: 0–255, linear dark to light.
CH6 — Strobe: 0–3 no strobe; 4–255 strobe. The table does not specify a speed direction for this channel.
CH7 — Programs/effects:
0–49: printed as "No1-7 Channel Effect" (ambiguous wording; please verify its meaning rather than assume).
50–99: Jump Change.
100–149: Gradient Change.
150–199: "Pluse Change" (as printed).
200–255: Sound Control.
CH8 — Effect speed: 0–255, slow to fast. The sheet says this "Corresponds to the speed of the 6-channel function"; please retain/check this reference rather than silently interpreting it as CH7.
The display menu lists d001–d512 for DMX addressing.
Observed mismatch: the substitute profile Blizzard HotBox RGBW 8CH makes the PARs flash intermittently/mostly flash and they do not follow the requested colors. It has not been verified as compatible. Please identify or create a profile using the actual manual values above and the original photo. If a product-label or fixture photo is needed to distinguish this generic unit, please advise.
Thank you.

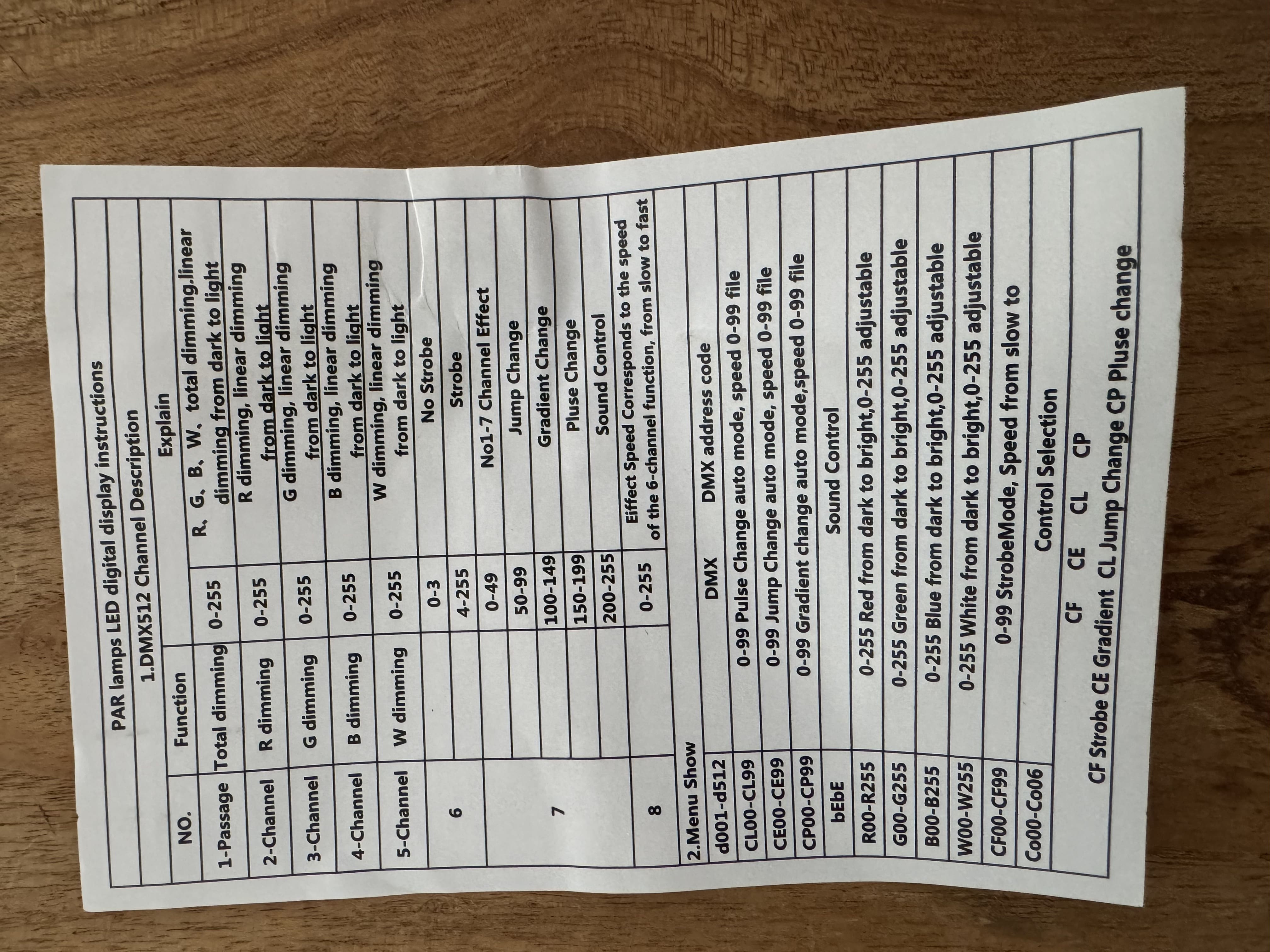

Manual photo:
